Downloading Transitland Datasets

Downloading via Transitland Website

To download free Transitland Datasets for non-commercial use:

1. Sign into your Interline account
2. Order a free Transitland Datasets subscription

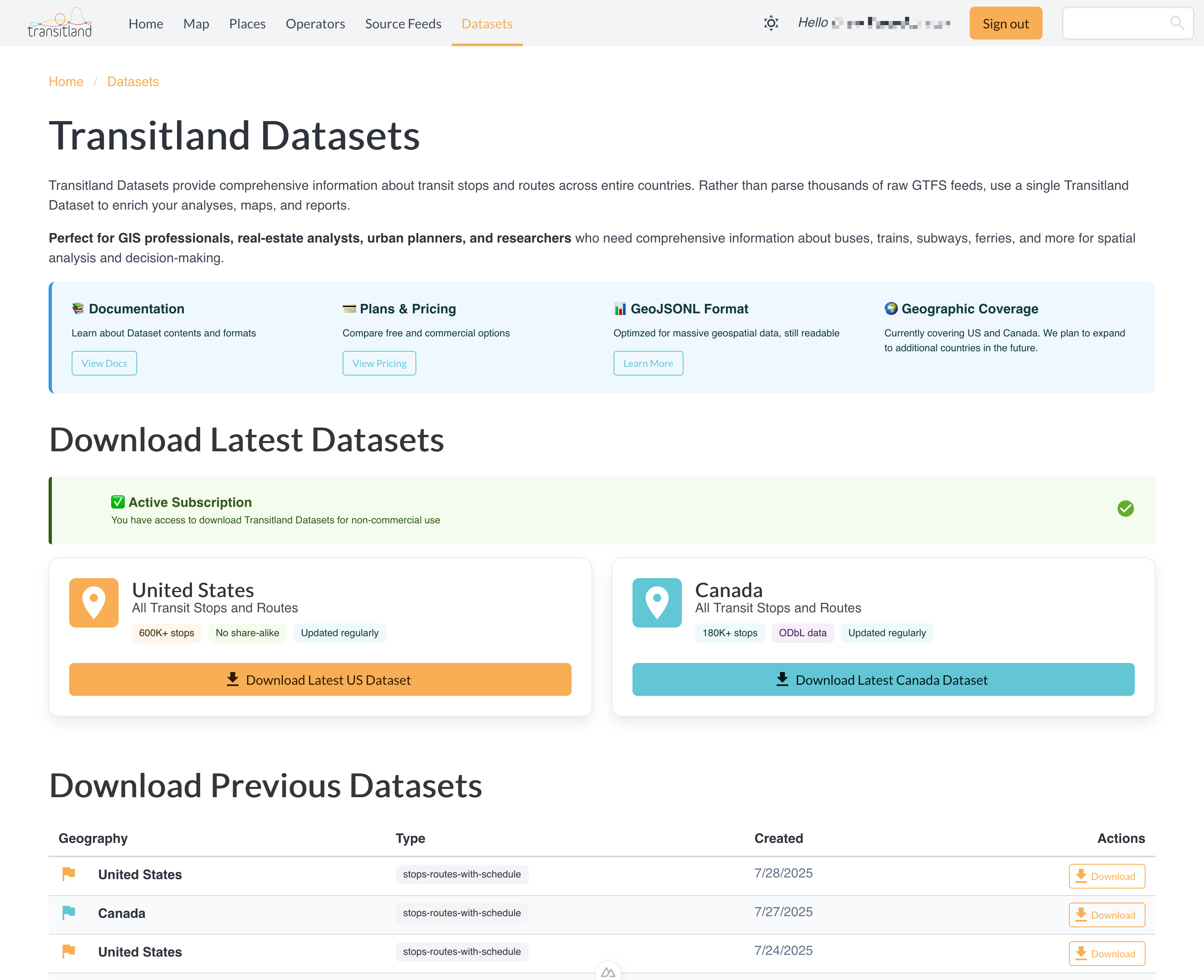

3. Navigate to the section
4. Select your desired Dataset package and click to download

Downloading via API

Transitland Datasets can also be downloaded programmatically. The API provides three endpoints:

List Available Datasets

Endpoint: GET https://app.interline.io/transitland_datasets

Authentication: None required

Description: Lists all available Transitland Datasets with their metadata.

Example Request:

curl https://app.interline.io/transitland_datasets

Example Response:

{
  "data": [
    {
      "attributes": {
        "bucket_key": "US/stops-routes-with-schedule/tl-dataset-US-2025-07-27T04:00:30.zip",
        "bucket_name": "transitland-datasets",
        "bucket_provider": "azure",
        "created_at": "2025-07-28T12:52:54.466Z",
        "dataset_type": "stops-routes-with-schedule",
        "geography": "US",
        "updated_at": "2025-07-28T12:52:54.466Z"
      },
      "id": "22",
      "type": "transitland_dataset"
    }
  ],
  "jsonapi": {
    "version": "1.0"
  }
}

Response Fields:

• id: Unique identifier for the dataset
• geography: Country code (US, CA)
• dataset_type: Type of dataset (currently only "stops-routes-with-schedule")
• created_at: When the dataset was created
• bucket_key, bucket_name, and bucket_provider: Internal storage information; outside users cannot download from this source directly

Download Dataset

Endpoint: GET https://app.interline.io/transitland_datasets/download_latest

Authentication: Required - Transitland Datasets API token

Parameters:

• geography (required): Country code - US or CA
• dataset_type (required): Dataset type - stops-routes-with-schedule
• api_token (required): Your Transitland Datasets API token

Description: Downloads the latest version of a specific dataset. Returns a 302 redirect to the actual file download.

Example Request:

curl "https://app.interline.io/transitland_datasets/download_latest?geography=US&dataset_type=stops-routes-with-schedule&api_token=YOUR_API_TOKEN"

Example Response:

HTTP/1.1 302 Found
Location: https://interline.blob.core.windows.net/transitland-datasets/US/stops-routes-with-schedule/tl-dataset-US-2025-07-27T04:00:30.zip?sp=r&sv=2018-11-09&sr=b

Download Specific Dataset

Endpoint: GET https://app.interline.io/transitland_datasets/{id}/download

Authentication: Required - Transitland Datasets API token

Parameters:

• id (required): Dataset ID from the list endpoint
• api_token (required): Your Transitland Datasets API token

Description: Downloads a specific dataset by its ID. Useful for downloading historical versions or specific releases.

Example Request:

curl "https://app.interline.io/transitland_datasets/22/download?api_token=YOUR_API_TOKEN"

Example Response:

HTTP/1.1 302 Found
Location: https://interline.blob.core.windows.net/transitland-datasets/US/stops-routes-with-schedule/tl-dataset-US-2025-07-27T04:00:30.zip?sp=r&sv=2018-11-09&sr=b

Getting Your API Token

To obtain a Transitland Datasets API token:

1. Sign into your Interline account
2. Order a Transitland Datasets subscription
3. Under the Subscriptions and API keys tab, find your Transitland Datasets order. It will list your API key

Programmatic Download Examples

Using curl:

# List available datasets
curl https://app.interline.io/transitland_datasets

# Download latest US dataset
curl -L "https://app.interline.io/transitland_datasets/download_latest?geography=US&dataset_type=stops-routes-with-schedule&api_token=YOUR_API_TOKEN" -o us-dataset.zip

# Download latest Canada dataset
curl -L "https://app.interline.io/transitland_datasets/download_latest?geography=CA&dataset_type=stops-routes-with-schedule&api_token=YOUR_API_TOKEN" -o ca-dataset.zip

# Download specific dataset by ID
curl -L "https://app.interline.io/transitland_datasets/22/download?api_token=YOUR_API_TOKEN" -o specific-dataset.zip

Error Handling

Common HTTP Status Codes:

• 200 OK: Success (for list endpoint)
• 302 Found: Success (for download endpoint - redirects to file)
• 401 Unauthorized: Invalid or missing API token
• 403 Forbidden: No active subscription for Transitland Datasets
• 404 Not Found: Invalid geography or dataset type
• 500 Internal Server Error: Server error
